Mini Excavator 210PH Auger Attachment | Ignite Attachments
✓ Free Shipping- Enjoy Free Shipping on Ignite Attachments!
✓ No Sales Tax on Your Order - No Sales Tax on Your Order*
✓ In Stock- Most orders leave the warehouse in 3-5 business days

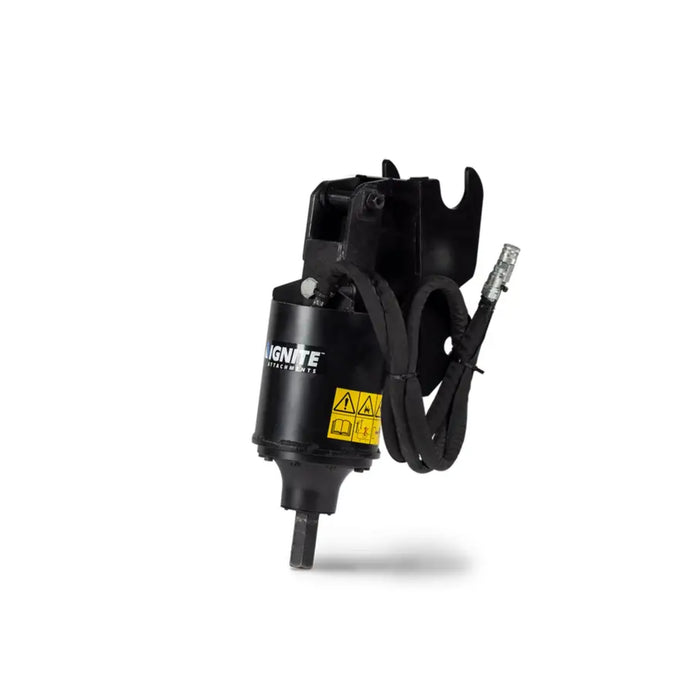

The Ignite MEX 210PH auger attachment quickly drills through hard-to-penetrate materials to a depth of 50 inches with a standard bit or up to 86 inches with an optional extension. With its flow range of 15-30 gpm, it works quickly with a wide range of carriers.
Planetary Drive
The planetary drive of the 210PH auger utilizes gears to generate maximum torque for penetrating difficult digging conditions, whether you're going up against shale, rocky soil, layers of frost or heavy clay.
Self-Balanced Alignment
With its unique joint between the mounting frame and drive unit, the auger attachment always makes a straight, vertical hole—even when your machine stands on uneven terrain.
Top Tasks
- Deck construction, playground equipment
- Foundations
- Utilities
- Fence installation
- Road sign, light pole installation
- Tree and shrub planting
- Pole sheds and outbuildings
How It Works
The MEX planetary-drive auger has a gearbox that amplifies the torque powering the auger bit. As the tip of the bit penetrates the soil, it easily breaks up hard surfaces while the auger rotation lifts dirt from the hole as you dig.
Specification
Attachment Interface | Kubota KX057 |
Overall Width | 11.25 in. |
Drive Unit Width | 11.25 in. |
Drive Unit Height | 33.5 in. |
Weight with Mount | 226 lb. |
Max Bit Size | 36 in. |
Drive Shaft | 2 in. Hex |
Pressure Range | 2,000 - 3,500 psi |
Torque @ 3000 psi | 2,562 lb/ft |
Max Flow | 30 gpm |
Speed at Max Flow | 104 rpm |
Quick Couplers | Faster Flat Face (CUP) |
Options | Hex-to-Round Adapter, 24 in. Extension, 36 in. Extension |
Attatchments
Auger Operations and Maintenance Manual
Warnings
This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
6-Month Warranty
Standard Attachment Warranty:
Ignite Attachments Ignite warrants to its authorized resellers and its customers that each new Ignite attachment will be free from proven defects in material and workmanship with respect to (i) all components of the product except as otherwise specified herein for twelve (12) months, (ii) auxiliary hydraulic quick couplers for six (6) months or 200 hours, whichever occurs first and (iii) non-serialized attachments for six (6) months. The foregoing time periods shall commence on the date of purchase by the original end-user. During the warranty period, Ignite will send replacement parts, replacement attachments and/or replacement implements without charge to the end-user for, any part of the Ignite product which fails because of defects in material or workmanship. Labor and repair costs, other than the cost of replacement parts, are not included under this warranty. The end-user shall provide Ignite with prompt written notice of the defect and allow reasonable time for the shipment and delivery of the replacement parts . Ignite may, at its option, require failed parts to be returned to Ignite. The remedies provided in this warranty are exclusive. This warranty does not cover replacement of scheduled service items and high wear items. The owner shall rely solely on the warranty, if any, of the respective manufacturers of such items. This warranty does not cover damages resulting from abuse, accidents, alterations, use of the Ignite product not in accordance with its recommended use, air flow obstructions, or failure to maintain or use the Ignite product according to the instructions applicable to it. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND CONDITIONS, EXCEPT THE WARRANTY OF TITLE. IGNITE DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL IGNITE OR THE AUTHORIZED IGNITE RESELLERBE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHATSOEVER, INCLUDING, BUT NOT LIMITED TO, LOSS OR INTERRUPTION OF BUSINESS, LOST PROFITS, OR LOSS OF MACHINE USE, WHETHER BASED ON CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY, STATUTE OR OTHERWISE, EVEN IF IGNITE OR ITS AUTHORIZED IGNITE RESELLERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE TOTAL LIABILITY OF IGNITE AND ITS AUTHORIZED IGNITE RESELLERS WITH RESPECT TO THE PRODUCT FURNISHED HEREUNDER SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT UPON WHICH SUCH LIABILITY IS BASED.
3PT PTO Driven Attachments Warranty:
Ignite Three-Point/PTO Driven Implements Ignite warrants to its Authorized Reseller and its Customers that each new Ignite Three-Point/PTO Driven implement will be free from proven defects in material and workmanship with respect to (i) all components of the product except as otherwise specified herein for a period of twelve (12) months and (ii) auxiliary hydraulic quick couplers for six (6) months or 200 hours, whichever occurs first. The foregoing time periods shall commence on the date of purchase by the original end-user. During the warranty period,Ignite will send replacement parts, replacement attachments and/or replacement implements without charge to the end-user for, any part of the Ignite product which fails because of defects in material or workmanship. Labor and repair costs, other than the cost of replacement parts, are not included under this warranty The end user shall provide the authorized Ignite Reseller with prompt written notice of the defect and allow reasonable time for the shipment and delivery of the replacement parts. Ignite may, at its option, require failed parts to be returned to Ignite. The remedies provided in this warranty are exclusive. This warranty does not cover replacement of scheduled service items and high wear items. The owner shall rely solely on the warranty, if any, of the respective manufacturers of such items. This warranty does not cover damages resulting from abuse, accidents, alterations, use of the Ignite product not in accordance with its recommended use, air flow obstructions, or failure to maintain or use the Ignite product according to the instructions applicable to it. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND CONDITIONS, EXCEPT THE WARRANTY OF TITLE. IGNITE DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL IGNITE OR ITS AUTHORIZED IGNITE RESELLERS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHATSOEVER, INCLUDING, BUT NOT LIMITED TO, LOSS OR INTERRUPTION OF BUSINESS, LOST PROFITS, OR LOSS OF MACHINE USE, WHETHER BASED ON CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY, STATUTE OR OTHERWISE, EVEN IF IGNITE OR ITS AUTHORIZED IGNITE RESELLERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE TOTAL LIABILITY OF IGNITE COMPANY AND THE AUTHORIZED IGNITE RESELLERS WITH RESPECT TO THE PRODUCT FURNISHED HEREUNDER SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT UPON WHICH SUCH LIABILITY IS BASED.
