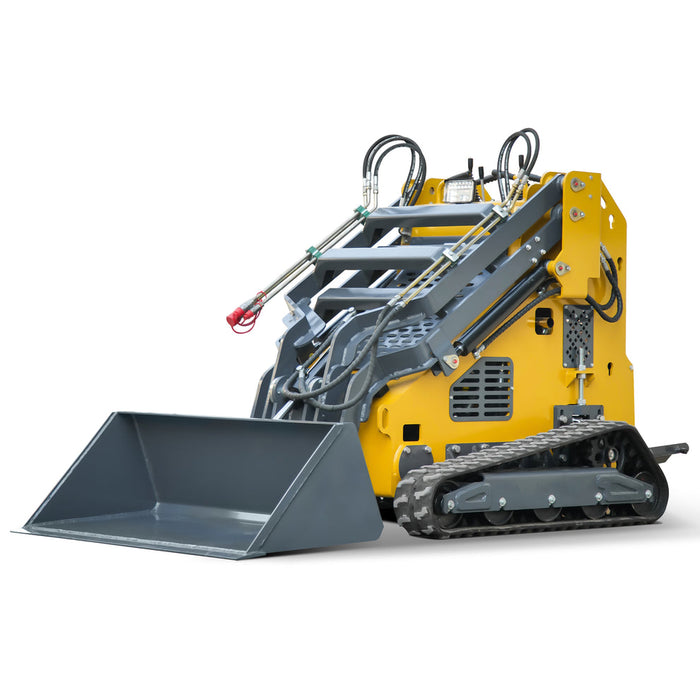

MS430Y 23HP, 950kg Gasoline Engine Crawler Skid Steer Loader with Three Pumps Three valves| MMS

The MS430Y 23HP, 950kg Gasoline Engine Crawler Skid Steer Loader with Three Pumps and Three Valves by MMS is a compact yet powerful machine, designed to tackle demanding tasks in construction, landscaping, and agricultural settings. Powered by the reliable 23HP RATO R740-1 engine, delivering 16 kW at 3600 rpm, this skid steer loader is engineered for robust performance and efficiency in a compact footprint.

Built to handle rigorous tasks, the MS430Y boasts a maximum lifting force of 380 kg and an operating load of 300 kg, making it an ideal choice for heavy-duty material handling. The machine’s advanced three pumps and three valves hydraulic system allows for precise control and efficient operation across a wide range of applications. With a maximum pressure of 17 Mpa and a flow rate of up to 21.6 L/min, the hydraulic system ensures smooth and powerful performance, enabling operators to manage complex tasks with ease.

The MS430Y is designed with versatility in mind, featuring a bucket capacity of 0.15 m³ and a max dumping height of 1465 mm with a 32° dumping angle, allowing for easy material handling and placement. Despite its powerful capabilities, the loader is compact, with a total width of 1120 mm and a ground clearance of 115 mm, making it suitable for confined or uneven work environments. Its adjustable travel speed, reaching up to 4.5 km/h, and its convenient 20L fuel tank capacity enable extended operation times and adaptability to various work conditions.

For operators, the MS430Y promises ease of use and convenience. Its compact structure—just 2085 mm in length with the bucket and 2035 mm with the pedal folded—facilitates easy transport and storage, while noise levels below 95 dB create a more comfortable working environment. Whether stacking, dumping, or maneuvering in tight spaces, the MS430Y Crawler Skid Steer Loader is engineered to deliver reliable, powerful, and efficient performance on every job.

Features

• Powerful Engine: Equipped with a 23HP RATO R740-1 gasoline engine delivering 16 kW at 3600 rpm for robust performance.
• High Lifting Capability: Supports a maximum lifting force of 380 kg and an operating load of 300 kg, ideal for handling heavy-duty tasks.
• Three Pumps, Three Valves System: Provides precise hydraulic control and improved efficiency for multiple applications.
• Compact and Versatile Design: With an overall width of 1120 mm and a bucket width of 1150 mm, the loader is compact enough for confined spaces.
• Efficient Hydraulic System: Features a 37L hydraulic tank and adjustable pressure up to 17 Mpa, supporting a flow rate of up to 21.6 L/min.
• Enhanced Dumping Capabilities:
  • Maximum dumping height of 1465 mm and a dumping distance of 485 mm.
  • A maximum dumping angle of 32° for improved material handling.
• Adjustable Travel Speed: Variable travel speed up to 4.5 km/h, allowing for flexibility in different work environments.
• Ample Fuel Capacity: A 20L fuel tank supports extended operation times.
• Compact Dimensions for Easy Storage:
  • Total length with bucket: 2085 mm
  • Total height: 1315 mm
  • Ground clearance of 115 mm for stability on uneven terrain.
• Enhanced Reach: Max working height of 2120 mm and a max pin height of 1890 mm, enabling high stacking and material placement.
• Noise Control: Operates at ≤95 dB, minimizing noise impact in work areas.
