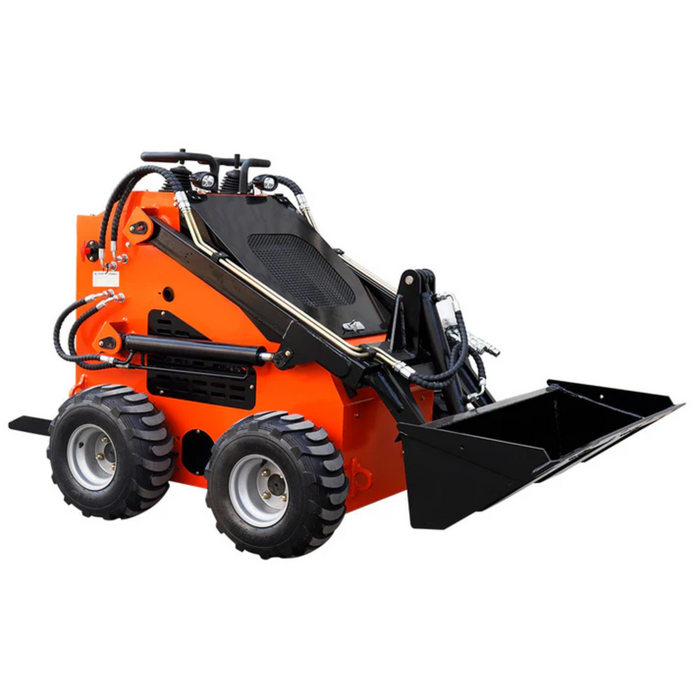

MS380L 22 HP, 800 Kg Mini Stand On Skid Steer Wheel Loader | MMS

The MS380L 22HP, 800 Kg Mini Stand-On Skid Steer Wheel Loader is a compact yet powerful solution for a wide range of material handling tasks. Designed for versatility, this machine is equipped with a 22HP RATO R740-1 gasoline engine, delivering 16 kW at 3600 rpm for consistent and efficient performance. With its compact dimensions and stand-on design, the MS380L is perfect for maneuvering in confined spaces, making it a reliable choice for construction, landscaping, and light industrial work.

This skid steer loader offers exceptional lifting capabilities, with a maximum lifting force of 380 kg and an operating load of 300 kg. Its advanced hydraulic system, featuring a 37L hydraulic tank, adjustable pressure up to 17 Mpa, and a flow rate of 21.6 L/min, ensures smooth and precise operation for handling a variety of materials.

The MS380L is designed to maximize efficiency with a bucket capacity of 0.15 m³ and a maximum dumping height of 1465 mm, while its 32° dumping angle and 485 mm dumping distance make it ideal for efficient material placement. Operators will appreciate its adjustable travel speed of up to 4.5 km/h, allowing for flexibility across different terrains and tasks.

Despite its robust capabilities, the loader remains compact and lightweight, with an overall width of 1120 mm, total length with bucket of 2085 mm, and a total weight of 800 kg. The low ground clearance of 115 mm provides excellent stability on uneven surfaces. The stand-on design ensures easy operation, while noise levels of ≤95 dB contribute to a comfortable working environment.

Whether stacking, transporting, or dumping materials, the MS380L Mini Stand-On Skid Steer Wheel Loader is engineered to provide a seamless, efficient, and powerful solution for all your material handling needs.

Features

• Compact Powerhouse: Features a 22HP RATO R740-1 engine, delivering 16 kW at 3600 rpm for reliable and efficient operation in tight spaces.

• High Lifting Performance: Supports a maximum lifting force of 380 kg and an operating load of 300 kg, making it ideal for a variety of material handling tasks.

• Compact and Maneuverable Design: With an overall width of 1120 mm and a bucket width of 1150 mm, the loader is compact and highly maneuverable, perfect for confined spaces or small job sites.

• Efficient Hydraulics: Equipped with a 37L hydraulic tank, a pressure range of 0–17 Mpa, and a maximum flow rate of 21.6 L/min, ensuring smooth, powerful, and precise hydraulic performance.

• Enhanced Dumping Capabilities: Offers a maximum dumping height of 1465 mm, a dumping distance of 485 mm, and a 32° dumping angle, making material placement efficient and accurate.

• Adaptable Travel Speed: Adjustable speed of up to 4.5 km/h, providing the flexibility to adapt to various terrains and job requirements.

• Ample Fuel and Operation Capacity: Designed with a 20L fuel tank for extended working hours, complemented by low noise levels of ≤95 dB for improved operator comfort.

• Optimized Reach and Handling: Features a max working height of 2120 mm and a max pin height of 1890 mm, providing excellent reach for stacking and lifting.

• Low Ground Clearance: With a ground clearance of 115 mm, the loader maintains stability on uneven terrains while minimizing disruption to the work surface.

• Compact for Storage and Transport:

  • Total length with bucket: 2085 mm
  • Total height: 1315 mm
  • Overall length without bucket after folding the pedal: 2035 mm

• Robust Bucket Capacity: A bucket capacity of 0.15 m³ makes it capable of handling various materials efficiently.
